Studio 630

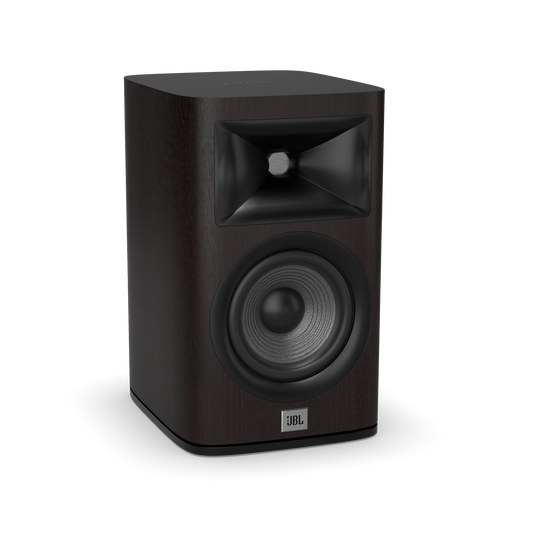

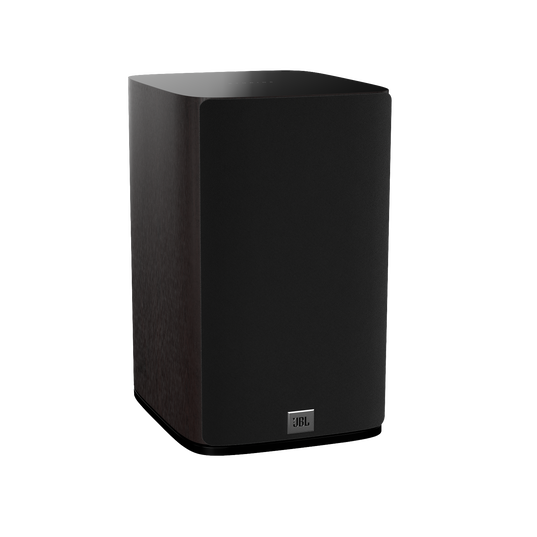

The JBL Studio 630 is a high-performance bookshelf loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6.5-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
Features
Top-graded PolyPlass cones
High-quality sounding compression drivers
New, appealing form factor
High-definition imaging Waveguide with high-frequency compression driver
Specs & Downloads
Item# JBLS630DKW
Product Description
Studio 630
The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
General Specifications
Single 6.5", 2-way compression driver bookshelf loudspeaker
Yes
6.5" (165mm) PolyPlas Low-Frequency Woofer
Yes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
Yes
Recommended Amplifier Power
Max 150W
Frequency Response
45Hz – 40kHz
Sensitivity
85dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
1.9 kHz
Enclosure Type

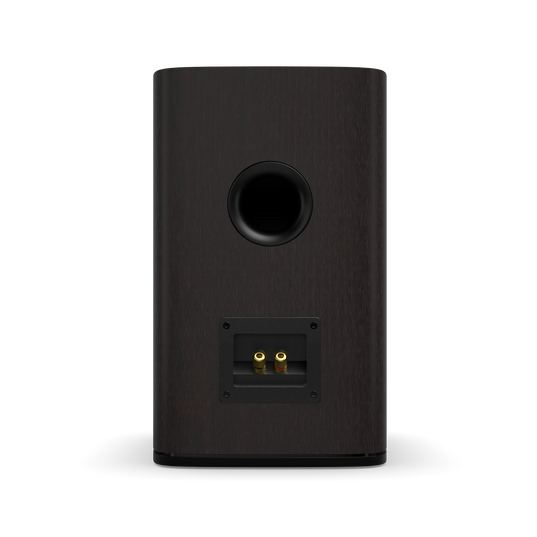

Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
230 x 280 x 372mm
What's in the box?
- 2 x JBL Studio 630 Bookshelf Loudspeaker
- 8 x Feet Pads
- 1 x Owner’s Manual
- 1 x Warranty Card
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
