Stage 280W
JBL JBL280W

Stage 280W

2-way Dual 5.25" (130mm) In-Wall Loudspeaker

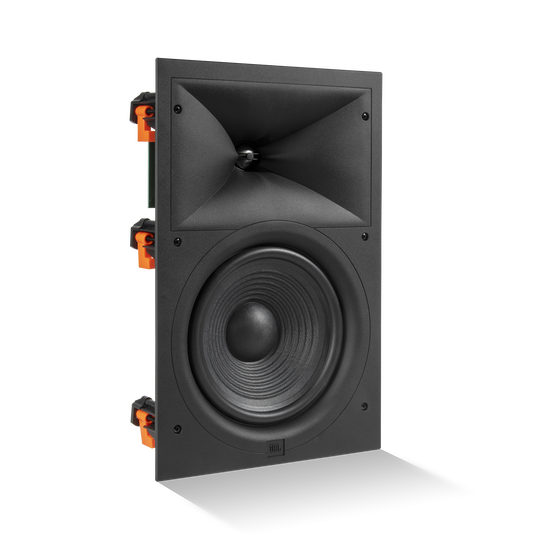

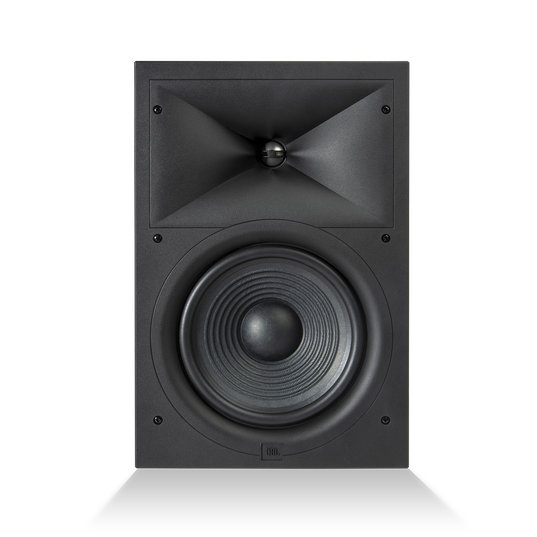

For more powerful bass, the Stage 280W features an 8" (200mm) Polycellulose cone woofer and a 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Variations

Features

1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

8" (200mm) Polycellulose cone woofer

8" (200mm) Polycellulose cone woofer

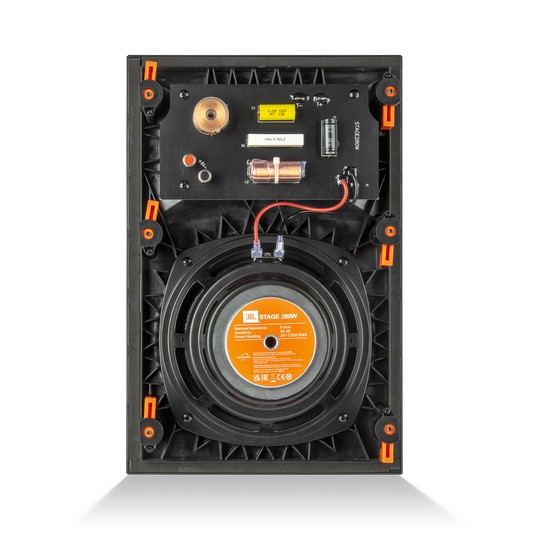

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

Rigid Baffle design with acoustic smoothing for improved transducer integration

Rigid Baffle design with acoustic smoothing for improved transducer integration

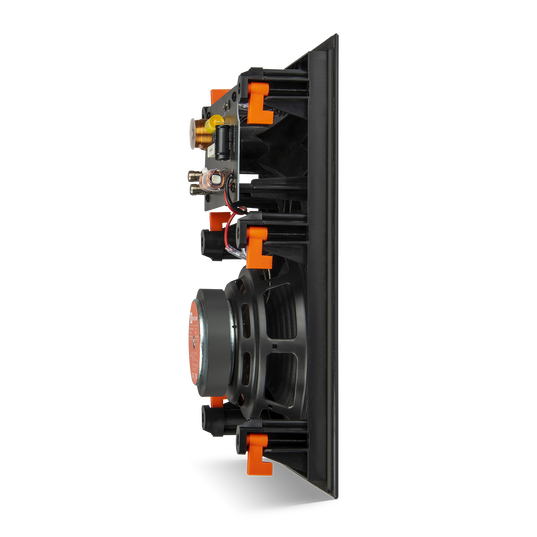

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

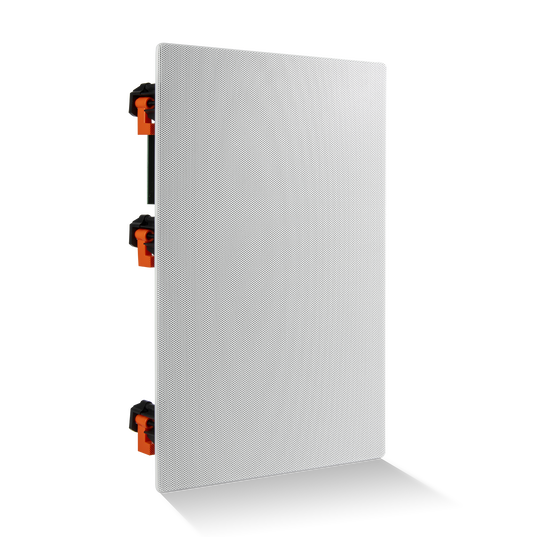

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Specs & Downloads

Item# JBL280W

Product Description

Stage 280W

For more powerful bass, the Stage 280W features an 8" (200mm) Polycellulose cone woofer and a 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

General Specifications

High Frequency Transducer 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) horn
Low Frequency Transducer 8" (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range) 20-120W RMS
Frequency Response 42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m) 90dB
Nominal Impedance 8ohm
Crossover Frequency 1700Hz
Inputs Nickel-plated spring-loaded connectors
Grille Dimensions H 15.7in (400mm) x W 10.5in (266mm)
Cutout Dimensions H 14.6in (372mm) x W 9.4in (238mm)
Mounting Depth 3.9in (98mm)
Product Weight (Kg) 2.8Kg
Shipping Carton Dimensions L 17.8in (453mm) x W 12.5in (318mm) x H 5.5in (140mm)
Shipping Carton Weight 8.38lbs (3.8Kg)
