Stage 250WL
Featuring Dual 5.25" (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Variations

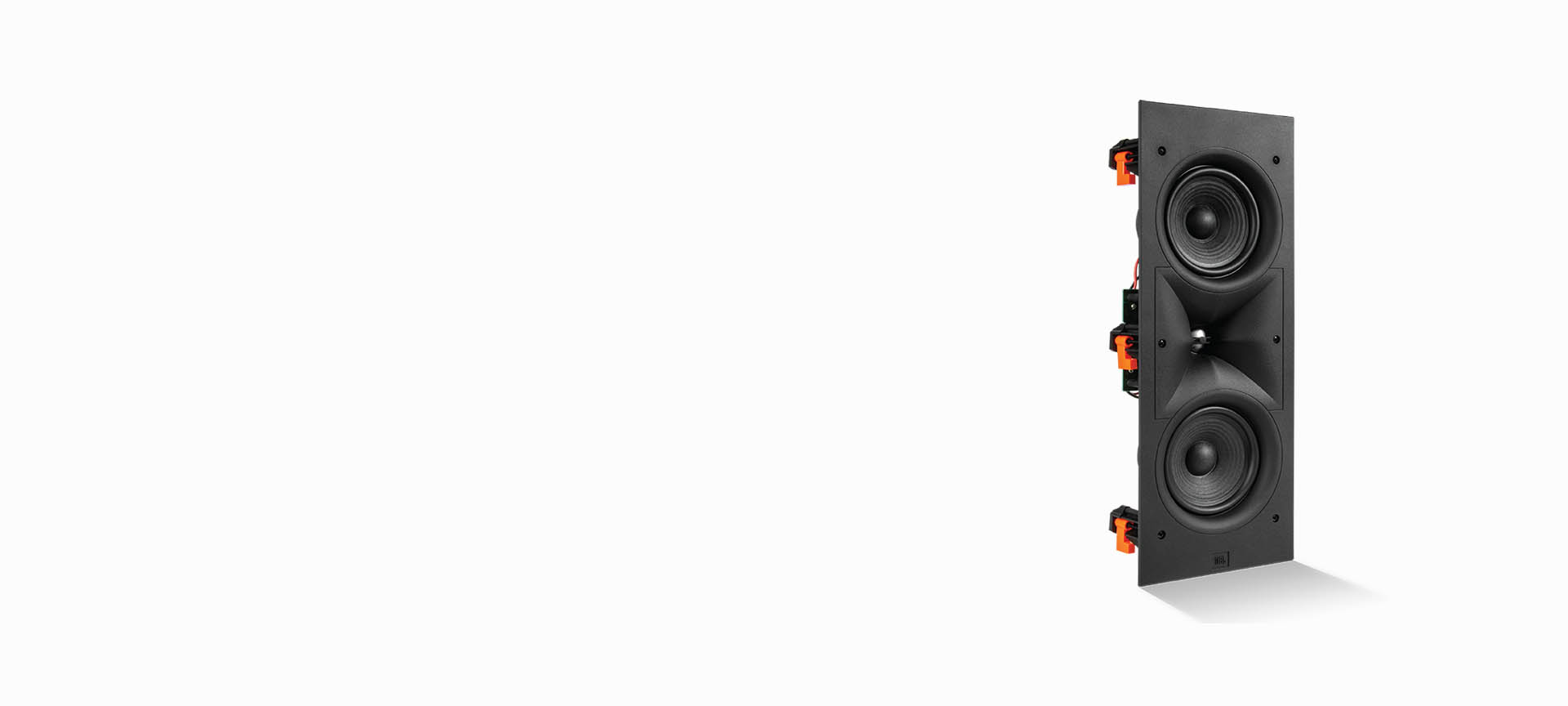

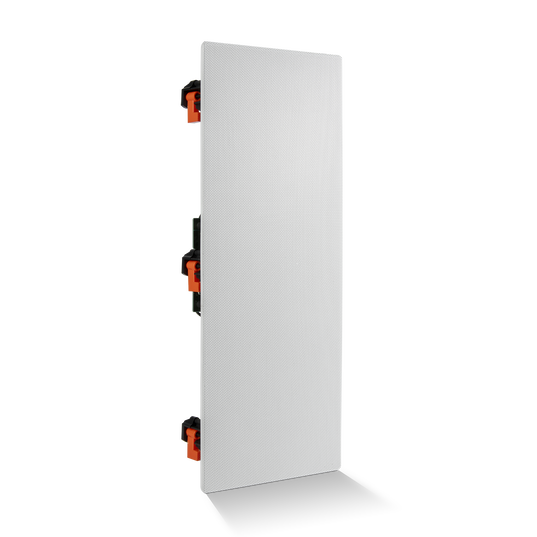

 Angled with Grille - 1605x1605.png?sw=537&sfrm=png "Stage 250WL - Black - 2-way Dual 5.25in (133mm) In-Wall Loudspeaker - Hero")

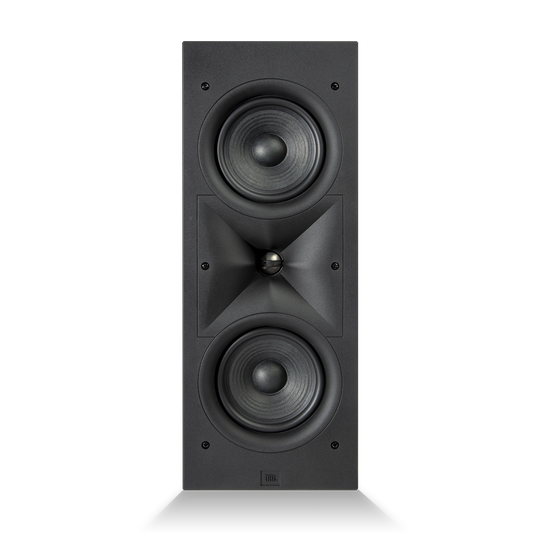

 Front No Grille - 1605x1605.png?sw=537&sfrm=png "Stage 250WL - Black - 2-way Dual 5.25in (133mm) In-Wall Loudspeaker - Front")

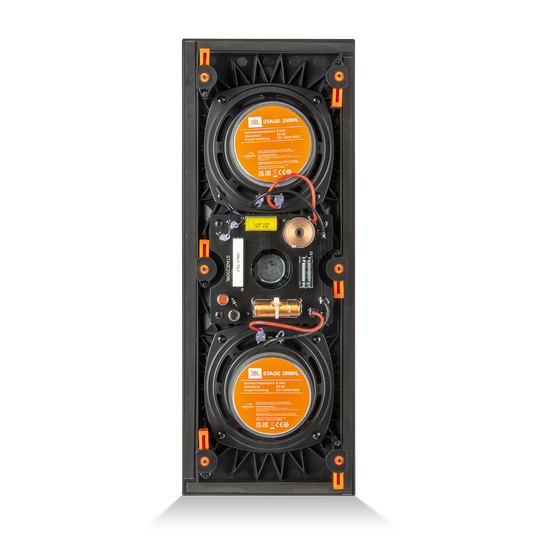

 Rear - 1605x1605.png?sw=537&sfrm=png "Stage 250WL - Black - 2-way Dual 5.25in (133mm) In-Wall Loudspeaker - Back")
 Angled No Grille - 1605x1605.png?sw=537&sfrm=png "Stage 250WL - Black - 2-way Dual 5.25in (133mm) In-Wall Loudspeaker - Left")

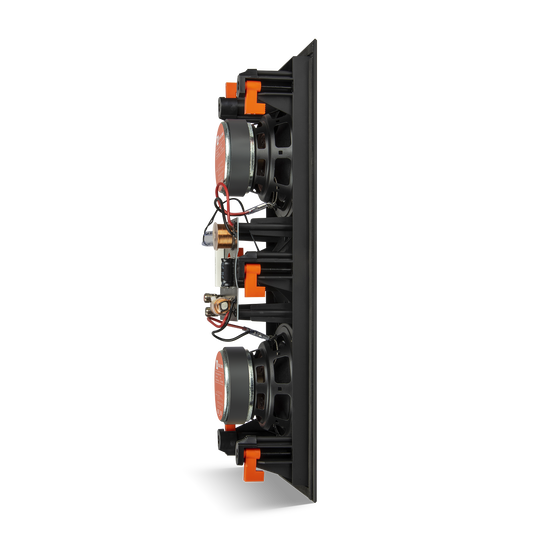

 Side - 1605x1605.png?sw=537&sfrm=png "Stage 250WL - Black - 2-way Dual 5.25in (133mm) In-Wall Loudspeaker - Right")
Features

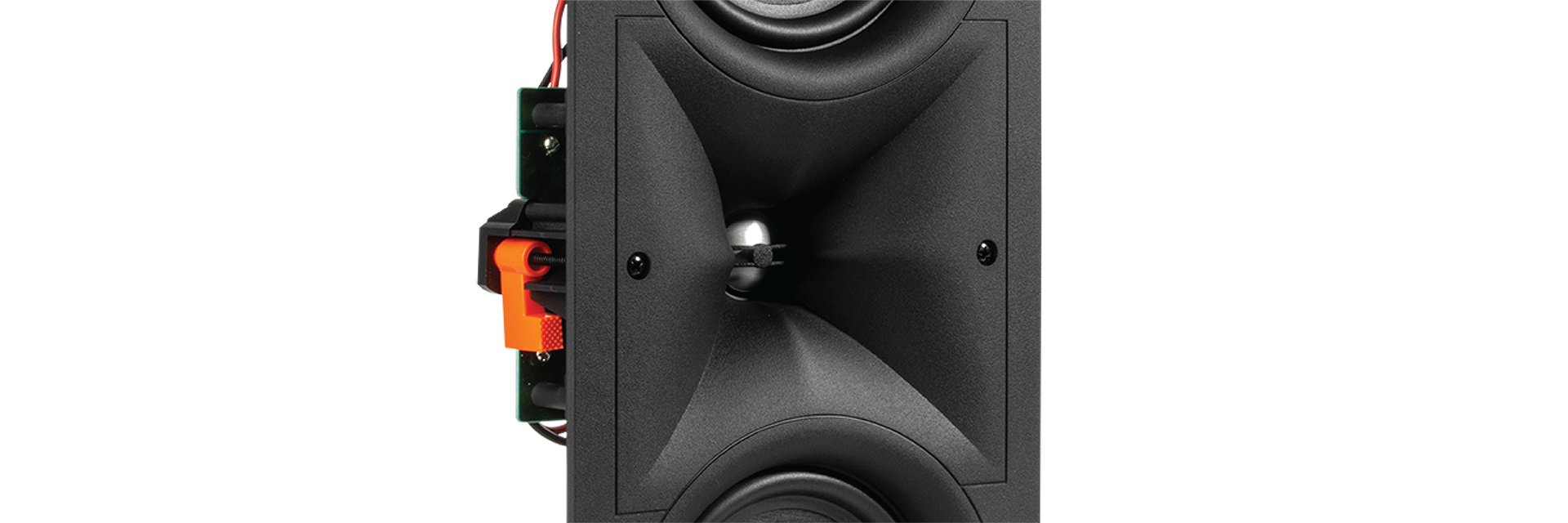

1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

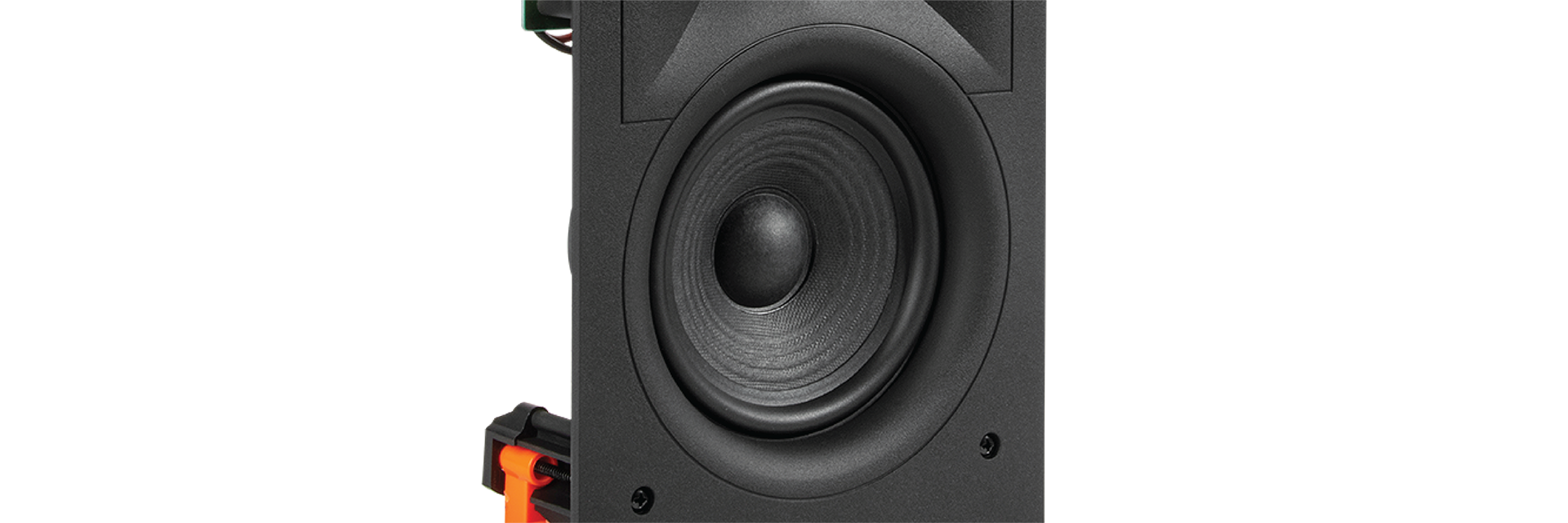

Dual 5.25" (130mm) Polycellulose cone woofers

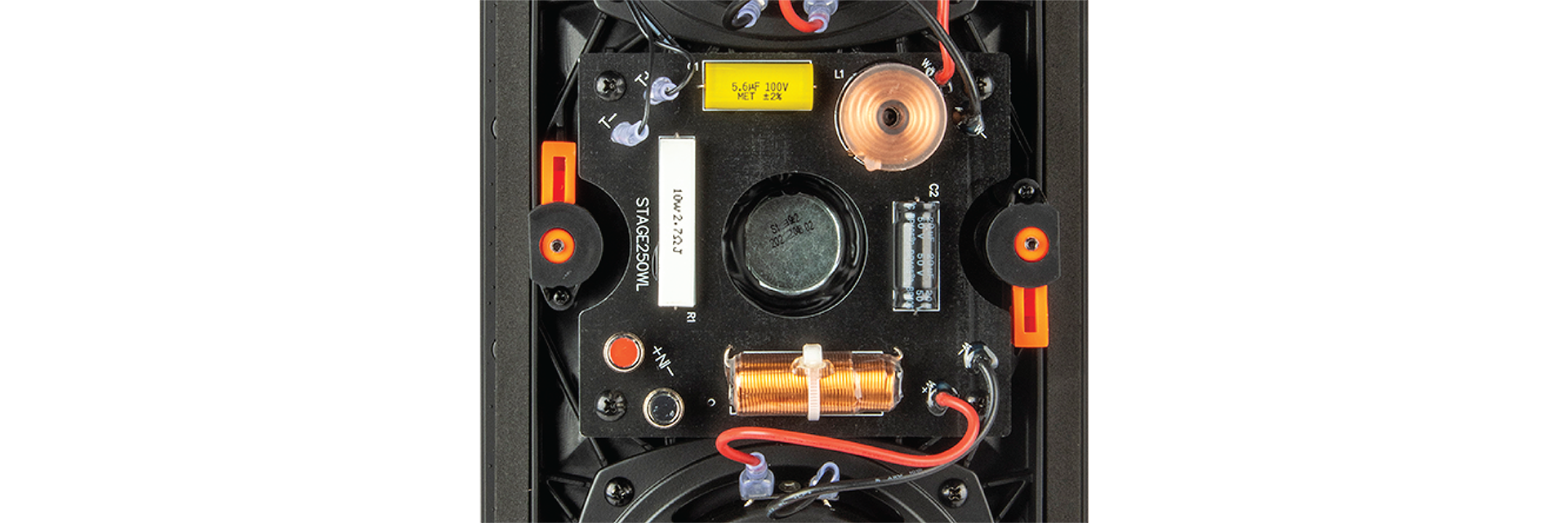

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

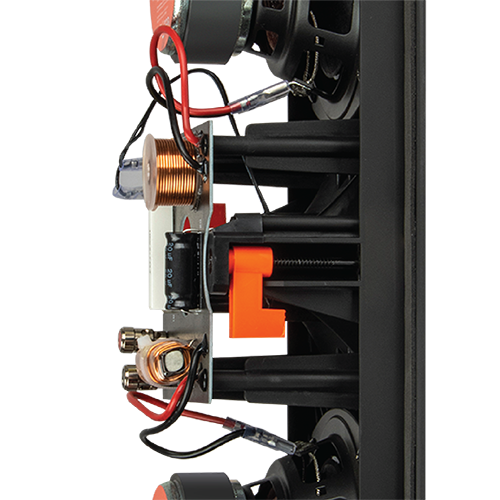

Rigid Baffle design with acoustic smoothing for improved transducer integration

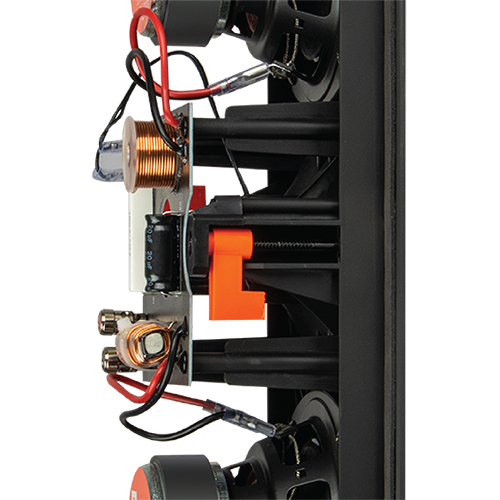

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.
Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Specs & Downloads
Item# JBL250WL
Product Description
Stage 250WL
Featuring Dual 5.25" (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
General Specifications
High Frequency Transducer
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
Low Frequency Transducer
Dual 5.25" (130mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-120W RMS
Frequency Response
52Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
90dB
Nominal Impedance
8ohm
Crossover Frequency
2100Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
H 19.5in (496mm) x W 7.6in (194mm)
Cutout Dimensions
H 18.1in (460mm) x W 6.4in (162mm)
Mounting Depth
3.8in (96mm)
Product Weight (Kg)
3.5Kg
Shipping Carton Dimensions
L 21.7in (552mm) x W 9.9in (252mm) x H 4.7in (120mm)
Shipping Carton Weight
9.61lbs (4.36Kg)
